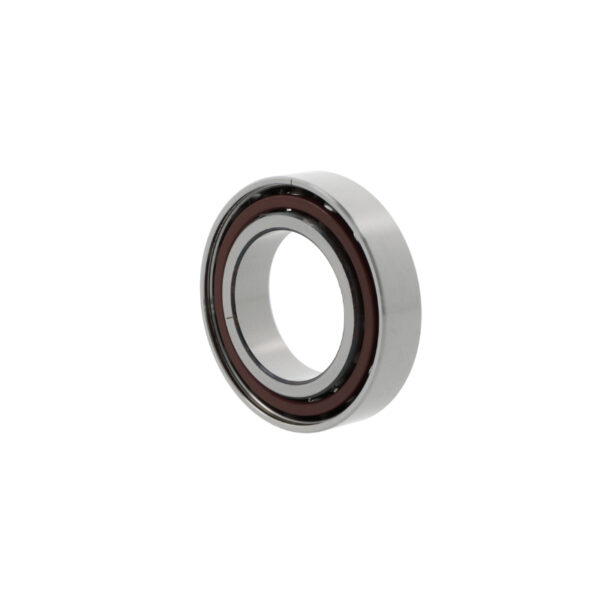

UKF – Spindle bearings – 70USSC25 .A21.0/I.M

70USSC25 .A21.0/I.M

HS code	84821090
Inner dimension	25 mm
Outer dimension	47 mm
Width	12 mm
Weight	0,07 kg
Material of rolling elements	Si3N4, silicon nitride (ceramics)
Seal	None, open bearing
Lubrication hole	Without lubrication groove
Contact angle	21 degree
Material	Standard bearing steel
Arrangement	Single universal bearing
Current insulation	Insulating ceramic balls
Lubrication	Preserved
Preload	Medium preload
Tolerance class inner ring	More accurate than P2 or ABEC 9
Tolerance class outer ring	More accurate than P4 or ABEC 7
Temperature range	-40 to +110 °C
Cage	Hard tissue cage
Ball rows	Single row bearing
Brand	UKF

Dimensions

Dimensions	0,05 × 0,05 × 0,015 mm
