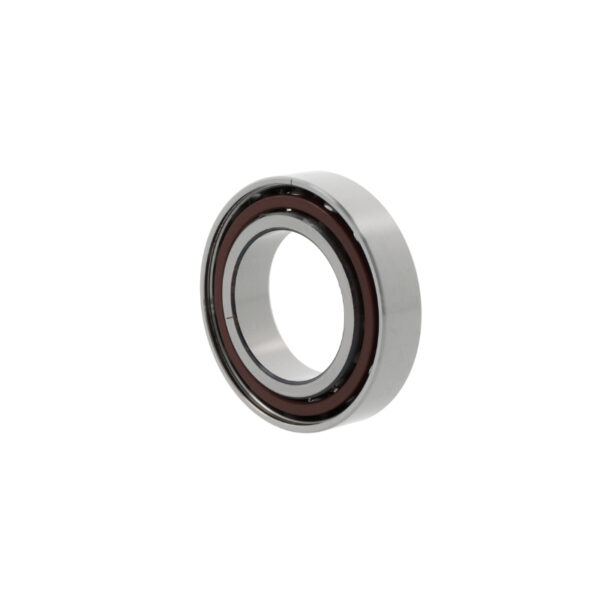

UKF – Spindle bearings – 70USSC35 .A21.0/I.S

70USSC35 .A21.0/I.S

HS code	84821090
Inner dimension	35 mm
Outer dimension	62 mm
Width	14 mm
Weight	0,15 kg
Material	Standard bearing steel
Seal	None, open bearing
Cage	Hard tissue cage
Temperature range	-30 to +100 °C
Current insulation	Insulating ceramic balls
Arrangement	Single universal bearing
Contact angle	21 degree
Material of rolling elements	Si3N4, silicon nitride (ceramics)
Preload	High preload
Lubrication	Preserved
Lubrication hole	Without lubrication groove
Tolerance class inner ring	More accurate than P2 or ABEC 9
Tolerance class outer ring	More accurate than P4 or ABEC 7
Ball rows	Single row bearing
Brand	UKF

Dimensions

Dimensions	0,065 × 0,065 × 0,023 mm
