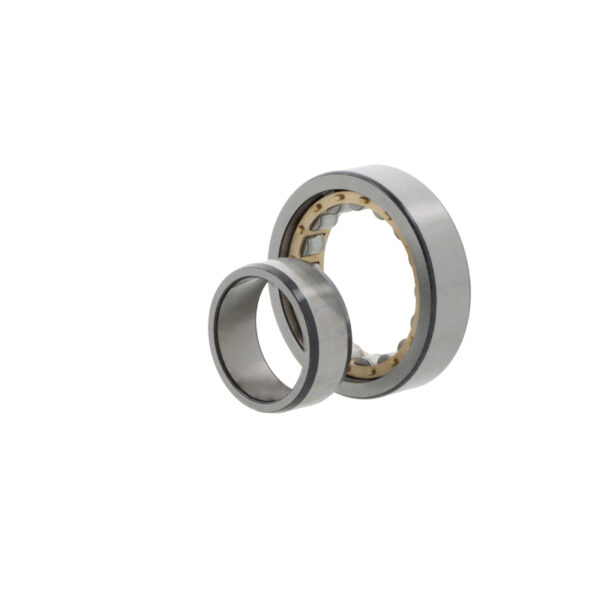

FAG – Cylindrical roller bearings – NU1024 -M1

NU1024 -M1

HS code	84825000
Inner dimension	120 mm
Outer dimension	180 mm
Width	28 mm
Weight	2,47 kg
Temperature range	-30 to +150 °C
Tolerance class	Tolerance class P0/PN2 / ABEC 1
Current insulation	No current insulation
Bore	Cylindrical bore
Roller rows	Single row bearing
Design	Floating bearing, inner ring removable on both sides
Cage	Brass cage
Outer ring	Without groove/lubrication holes
Clearance	Normal radial clearance
Seal	None, open bearing
Brand	FAG

Dimensions

Dimensions	0,186 × 0,184 × 0,034 mm
