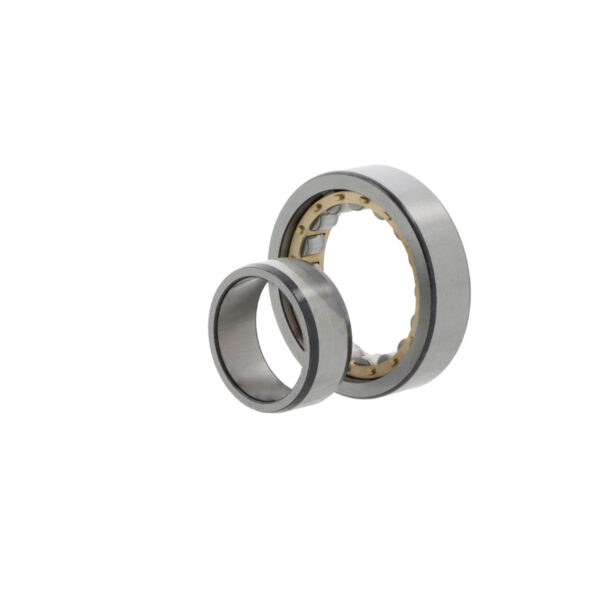

FAG – Cylindrical roller bearings – NU2228 -E-M1A-C3

NU2228 -E-M1A-C3

HS code	84825000
Inner dimension	140 mm
Outer dimension	250 mm
Width	68 mm
Weight	14,7 kg
Clearance	Slightly increased radial clearance
Seal	None, open bearing
Tolerance class	Tolerance class P0/PN2 / ABEC 1
Current insulation	No current insulation
Bore	Cylindrical bore
Roller rows	Single row bearing
Design	Floating bearing, inner ring removable on both sides
Cage	Brass cage
Outer ring	Without groove/lubrication holes
Temperature range	-30 to +150 °C
Brand	FAG

Dimensions

Dimensions	0,298 × 0,294 × 0,14 mm
