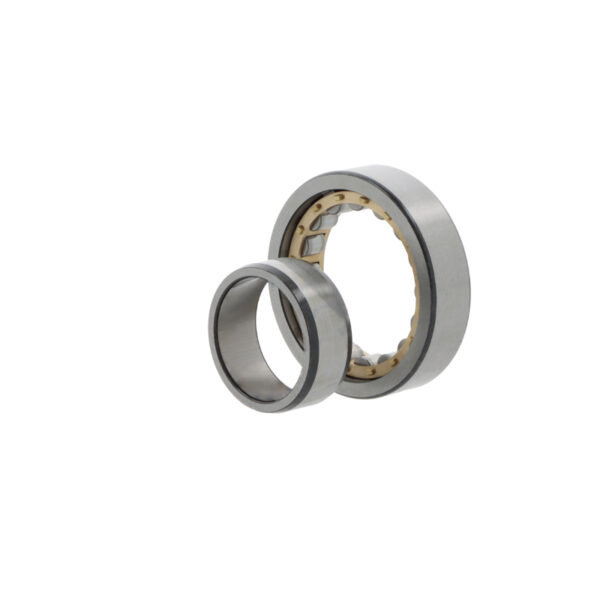

FAG – Cylindrical roller bearings – NU2330 -E-M1-C3

NU2330 -E-M1-C3

HS code	84825000
Inner dimension	150 mm
Outer dimension	320 mm
Width	108 mm
Weight	43,9 kg
Tolerance class	Tolerance class P0/PN2 / ABEC 1
Temperature range	-30 to +150 °C
Bore	Cylindrical bore
Roller rows	Single row bearing
Design	Floating bearing, inner ring removable on both sides
Clearance	Slightly increased radial clearance
Seal	None, open bearing
Cage	Brass cage
Outer ring	Without groove/lubrication holes
Current insulation	No current insulation
Brand	FAG

Dimensions

Dimensions	0,38 × 0,38 × 0,37 mm
