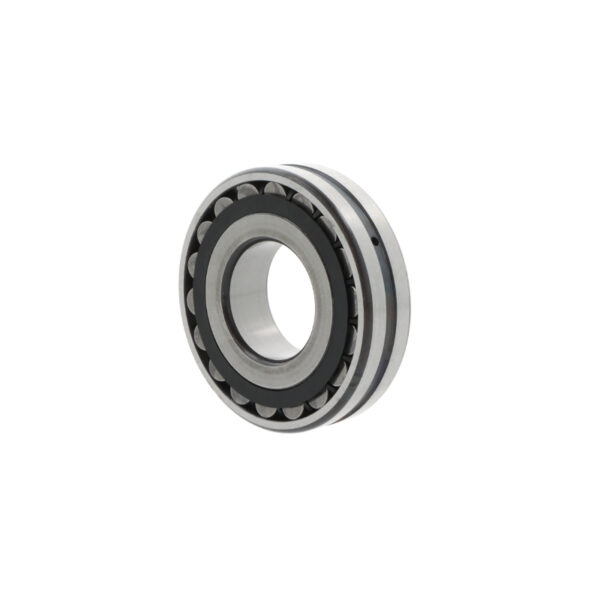

FAG – Spherical roller bearings – 23032 -E1-XL-TVPB-C3

Name: FAG - Spherical roller bearings - 23032 -E1-XL-TVPB-C3
SKU: 59320
Availability: InStock

€347,35

23032 -E1-XL-TVPB-C3

3 in stock

23032 -E1-XL-TVPB-C3

HS code	84823000
Inner dimension	160 mm
Outer dimension	240 mm
Width	60 mm
Weight	8,9 kg
Clearance	Slightly increased radial clearance
Tolerance class	Tolerance class P0/PN2 / ABEC 1
Temperature range	-30 to +120 °C
Seal	None, open bearing
Outer ring	Lubrication groove with lubrication holes on outer ring
Cage	Polyamide cage
Version	Standard version
Bore	Cylindrical bore
Material	Standard bearing steel
Brand	FAG

Dimensions

Dimensions	0,276 × 0,276 × 0,066 mm
