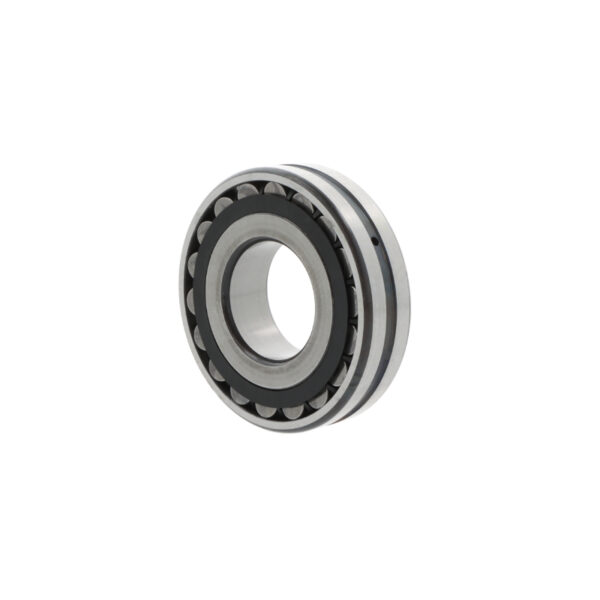

FAG – Spherical roller bearings – 23234 -E1-XL-TVPB-C3

23234 -E1-XL-TVPB-C3

HS code	84823000
Inner dimension	170 mm
Outer dimension	310 mm
Width	110 mm
Weight	34,9 kg
Clearance	Slightly increased radial clearance
Tolerance class	Tolerance class P0/PN2 / ABEC 1
Temperature range	-30 to +120 °C
Seal	None, open bearing
Outer ring	Lubrication groove with lubrication holes on outer ring
Cage	Polyamide cage
Version	Standard version
Bore	Cylindrical bore
Material	Standard bearing steel
Brand	FAG

Dimensions

Dimensions	0,4 × 0,4 × 0,21 mm
