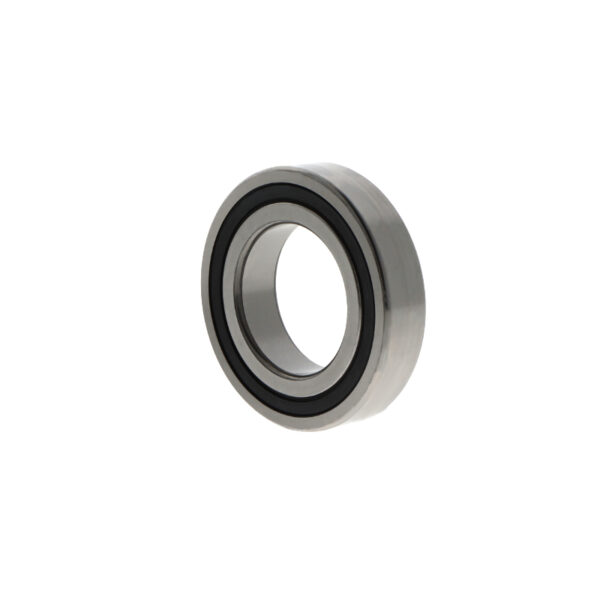

FAG – Spindle bearings – XCS71911 -E-T-P4S-UL

XCS71911 -E-T-P4S-UL

HS code	84821090
Inner dimension	55 mm
Outer dimension	80 mm
Width	13 mm
Weight	0,171 kg
Temperature range	-30 to +100 °C
Material of rolling elements	Si3N4, silicon nitride (ceramics)
Version	High-speed bearing
Ball rows	Single row bearing
Lubrication	High temperature grease
Contact angle	25 degree
Tolerance class	Dimensional accuracy P4 or ABEC 7, running accuracy P2 or AB
Arrangement	Single universal bearing
Lubrication hole	Without lubrication groove
Cage	Hard tissue cage
Current insulation	Insulating ceramic balls
Preload	Light preload
Seal	Non-contact seal on both sides
Material	Stainless steel (Cronidur)
Brand	FAG

Dimensions

Dimensions	0,08 × 0,08 × 0,02 mm
