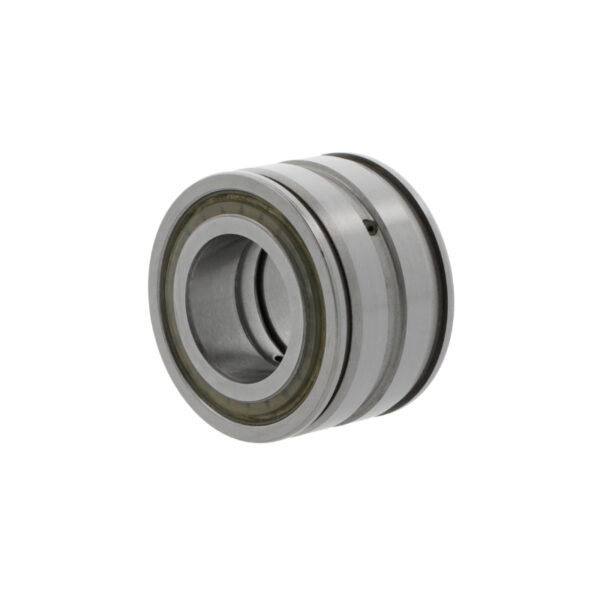

NKE – Cylindrical roller bearings – NNF5008 -A-2LS-V

NNF5008 -A-2LS-V

HS code	84825000
Inner dimension	40 mm
Outer dimension	68 mm
Width	38 mm
Weight	0,53 kg
Cage	None, full complement bearing
Temperature range	-20 to +80 °C
Tolerance class	Tolerance class P0/PN2 / ABEC 1
Current insulation	No current insulation
Bore	Cylindrical bore
Roller rows	Double row bearing
Design	Fixed bearing
Outer ring	Two ring grooves and a lubrication hole in outer ring
Seal	Contact seals on both sides
Clearance	Normal radial clearance
Brand	NKE

Dimensions

Dimensions	0,078 × 0,078 × 0,045 mm
