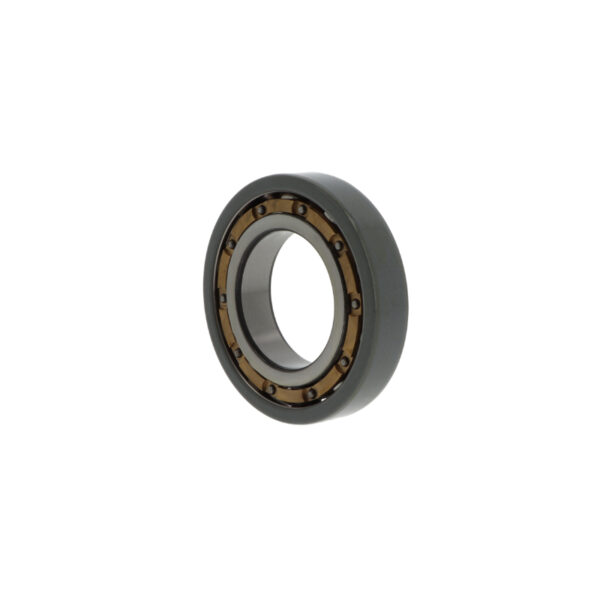

NKE – Deep groove ball bearings – 6320 -M-C3-SQ77

6320 -M-C3-SQ77

HS code	84821090
Inner dimension	100 mm
Outer dimension	215 mm
Width	47 mm
Weight	8,4 kg
Tolerance class	Tolerance class P0/PN2 / ABEC 1
Outer ring	Without flange/groove
Clearance	Slightly increased radial clearance
Cage	Brass cage
Current insulation	Current insulation of outer surfaces of the outer ring (up t
Bore	Cylindrical bore
Seal	None, open bearing
Material	Standard bearing steel
Temperature range	-20 to +120 °C
Ball rows	Single row bearing
Brand	NKE

Dimensions

Dimensions	0,276 × 0,272 × 0,08 mm
