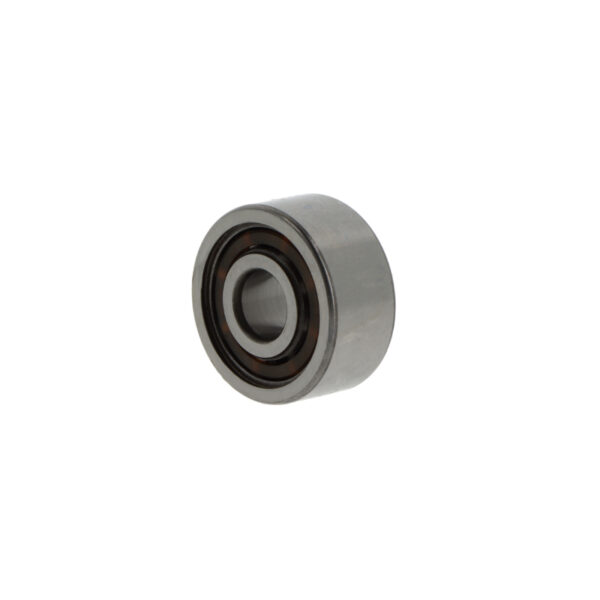

NSK – Angular contact ball bearings – 3309 BTNGC3

3309 BTNGC3

HS code	84821090
Inner dimension	45 mm
Outer dimension	100 mm
Width	39,7 mm
Weight	1,3 kg
Seal	None, open bearing
Clearance	Slightly increased radial clearance
Cage	Polyamide cage
Temperature range	-20 to +120 °C
Tolerance class	Tolerance class P0/PN2 / ABEC 1
Arrangement	Bearing pair with a low axial clearance in O- and X-arrangem
Contact angle	40 degree
Outer ring	Without flange/groove
Ball rows	Double row bearing
Material	Standard bearing steel
Brand	NSK

Dimensions

Dimensions	0,108 × 0,106 × 0,044 mm
