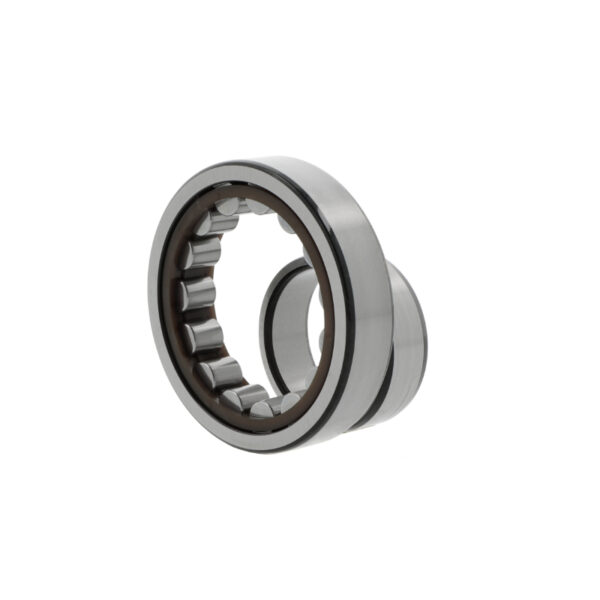

SKF – Cylindrical roller bearings – NU209 ECP/C3

NU209 ECP/C3

HS code	84825000
Inner dimension	45 mm
Outer dimension	85 mm
Width	19 mm
Weight	0,434 kg
Temperature range	-30 to +120 °C
Current insulation	No current insulation
Bore	Cylindrical bore
Roller rows	Single row bearing
Design	Floating bearing, inner ring removable on both sides
Outer ring	Without groove/lubrication holes
Cage	Polyamide cage
Tolerance class	Dimensional accuracy P0/PN or ABEC 1, running accuracy P6 or
Clearance	Slightly increased radial clearance
Seal	None, open bearing
Brand	SKF

Dimensions

Dimensions	0,09 × 0,088 × 0,022 mm
