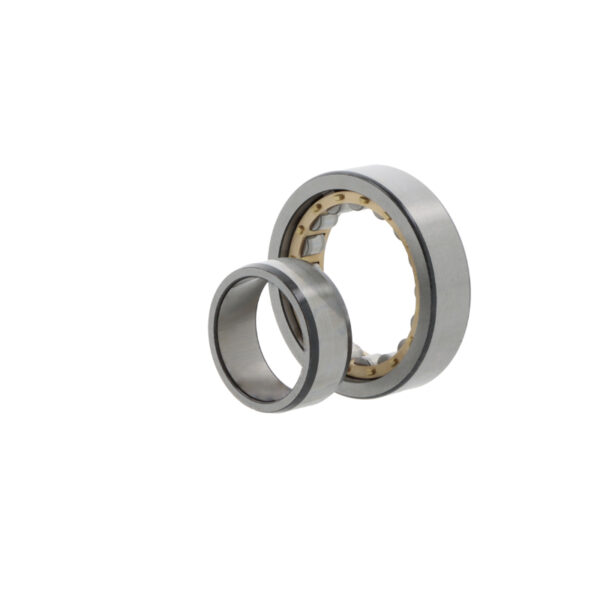

SKF – Cylindrical roller bearings – NU2324 ECML/C3

NU2324 ECML/C3

HS code	84825000
Inner dimension	120 mm
Outer dimension	260 mm
Width	86 mm
Weight	22,759 kg
Temperature range	-30 to +150 °C
Current insulation	No current insulation
Bore	Cylindrical bore
Roller rows	Single row bearing
Design	Floating bearing, inner ring removable on both sides
Clearance	Slightly increased radial clearance
Seal	None, open bearing
Outer ring	Without groove/lubrication holes
Cage	Brass cage
Tolerance class	Dimensional accuracy P0/PN or ABEC 1, running accuracy P6 or
Brand	SKF

Dimensions

Dimensions	0,292 × 0,286 × 0,094 mm
