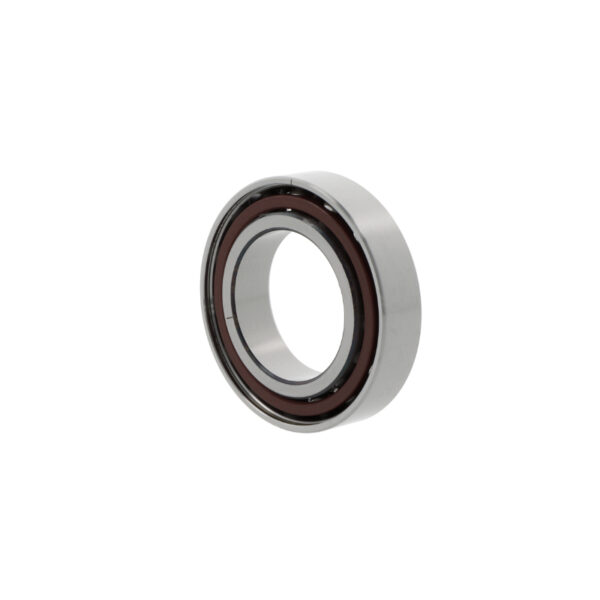

UKF – Spindle bearings – 70UHC35 .A15.I/1.L

70UHC35 .A15.I/1.L

HS code	84821090
Inner dimension	35 mm
Outer dimension	62 mm
Width	14 mm
Weight	0,16 kg
Lubrication hole	Without lubrication groove
Cage	Hard tissue cage
Seal	None, open bearing
Material of rolling elements	Si3N4, silicon nitride (ceramics)
Arrangement	Single universal bearing
Lubrication	Preserved
Version	High-speed bearing
Current insulation	Insulating ceramic balls
Contact angle	15 degree
Material	Standard bearing steel
Tolerance class inner ring	More accurate than P4 or ABEC 7
Tolerance class outer ring	More accurate than P5 or ABEC 5
Preload	Light preload
Temperature range	-40 to +110 °C
Ball rows	Single row bearing
Brand	UKF

Dimensions

Dimensions	0,065 × 0,065 × 0,017 mm
