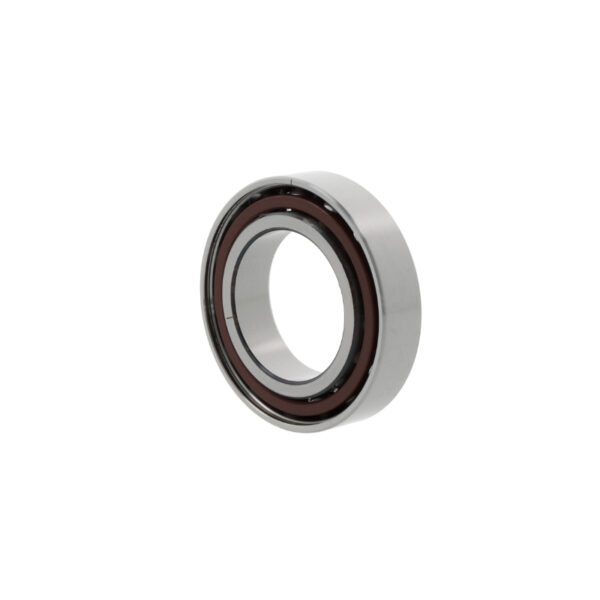

UKF – Spindle bearings – 70UHC50 .A15.I/1.L

70UHC50 .A15.I/1.L

HS code	84821090
Inner dimension	50 mm
Outer dimension	80 mm
Width	16 mm
Weight	0,25 kg
Version	High-speed bearing
Material of rolling elements	Si3N4, silicon nitride (ceramics)
Cage	Hard tissue cage
Seal	None, open bearing
Lubrication hole	Without lubrication groove
Contact angle	15 degree
Arrangement	Single universal bearing
Lubrication	Preserved
Material	Standard bearing steel
Current insulation	Insulating ceramic balls
Preload	Light preload
Tolerance class inner ring	More accurate than P4 or ABEC 7
Tolerance class outer ring	More accurate than P5 or ABEC 5
Temperature range	-40 to +110 °C
Ball rows	Single row bearing
Brand	UKF

Dimensions

Dimensions	0,08 × 0,08 × 0,02 mm
