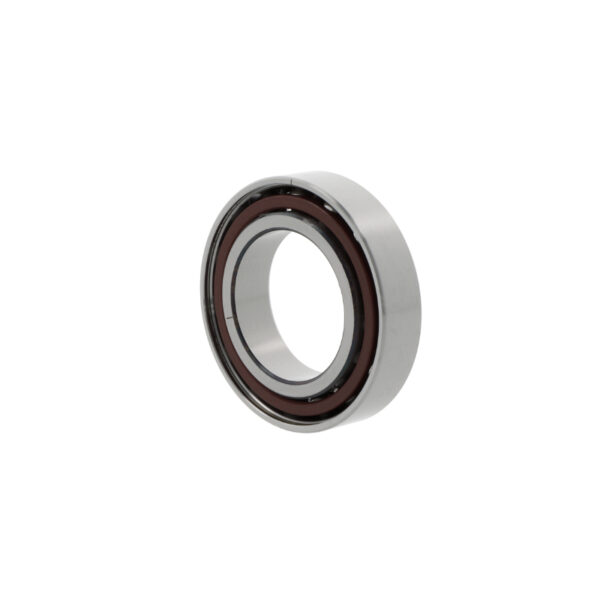

UKF – Spindle bearings – 70USSC50 .A21.0/I.M

70USSC50 .A21.0/I.M

HS code	84821090
Inner dimension	50 mm
Outer dimension	80 mm
Width	16 mm
Weight	0,22 kg
Lubrication hole	Without lubrication groove
Seal	None, open bearing
Material of rolling elements	Si3N4, silicon nitride (ceramics)
Lubrication	Preserved
Arrangement	Single universal bearing
Material	Standard bearing steel
Contact angle	21 degree
Current insulation	Insulating ceramic balls
Tolerance class inner ring	More accurate than P2 or ABEC 9
Tolerance class outer ring	More accurate than P4 or ABEC 7
Preload	Medium preload
Temperature range	-40 to +110 °C
Cage	Hard tissue cage
Ball rows	Single row bearing
Brand	UKF

Dimensions

Dimensions	0,08 × 0,08 × 0,02 mm
