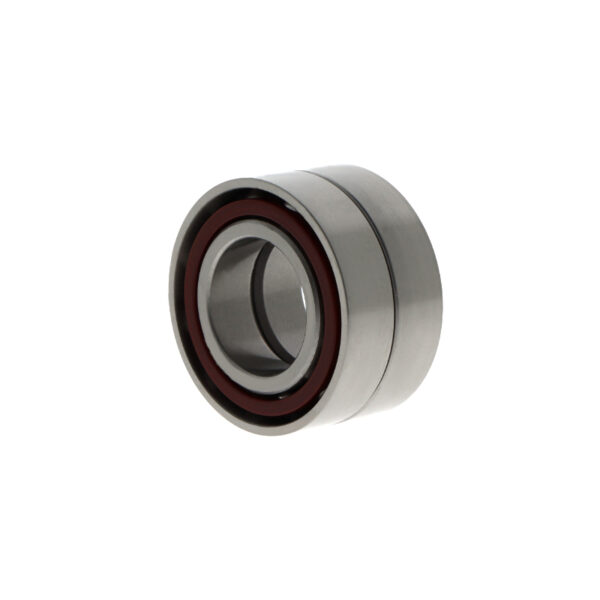

UKF – Spindle bearings – 719UHC20 .A15.0/I.DB.L

719UHC20 .A15.0/I.DB.L

HS code	84821090
Inner dimension	20 mm
Outer dimension	37 mm
Width	9 mm
Weight	0,04 kg
Lubrication hole	Without lubrication groove
Material of rolling elements	Si3N4, silicon nitride (ceramics)
Lubrication	Preserved
Version	High-speed bearing
Ball rows	Two single row bearings
Current insulation	Insulating ceramic balls
Material	Standard bearing steel
Tolerance class inner ring	More accurate than P2 or ABEC 9
Tolerance class outer ring	More accurate than P4 or ABEC 7
Preload	Light preload
Cage	Hard tissue cage
Seal	None, open bearing
Arrangement	Set of two bearings in O-arrangement
Contact angle	15 degree
Temperature range	-40 to +110 °C
Brand	UKF

Dimensions

Dimensions	0,05 × 0,05 × 0,025 mm
